Power Circuit Inspection

WARNING: This page is about a different variant/trim than selected.

■ Check for Short to Ground in Power Circuit

  1. Ignition 'OFF'.
  2. Disconnect A/C pressure sensor harness connector.
  3. Measure resistance between power terminal of A/C pressure S. harness connector and chassis ground.

    Specification:  Infinite

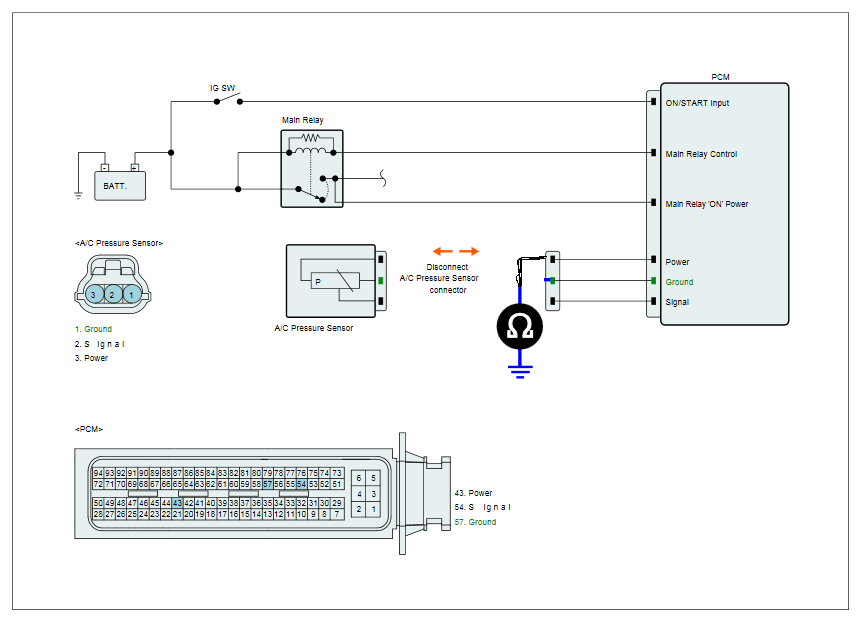

    Fig 1: Measuring Resistance Between Power Terminal Of A/C Pressure Sensor Harness Connector And Chassis Ground
    G10606752Courtesy of HYUNDAI MOTOR AMERICA
  4. Is resistance within specification?

    YES

    • Go to next procedure.

    NO

■ Check for Open in Power Circuit

  1. IG KEY OFF.
  2. Disconnect A/C pressure sensor harness connector.
  3. IG KEY ON.
  4. Measure voltage between power terminal of A/C pressure S. harness connector and chassis ground.

    Specification:  Approx. 5V

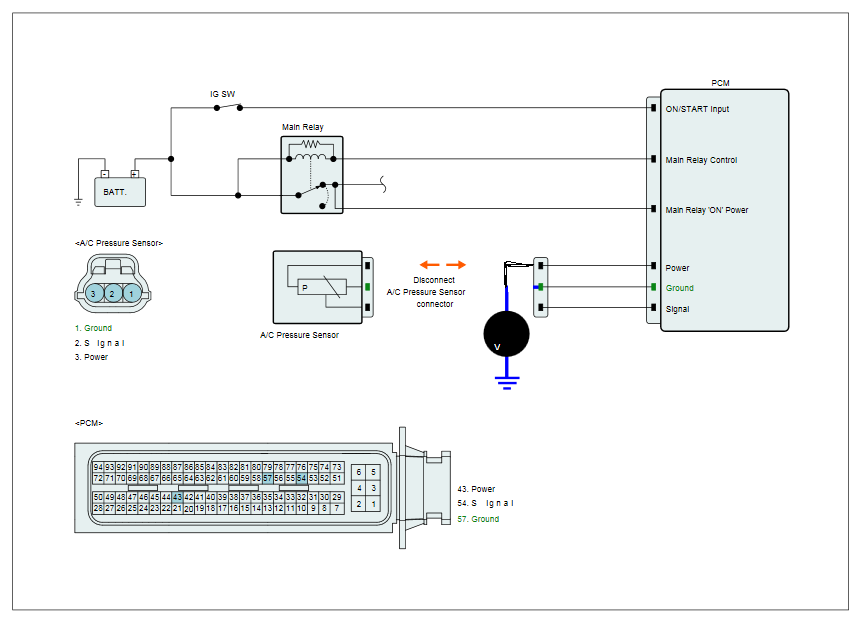

    Fig 2: Measuring Voltage Between Power Terminal Of A/C Pressure Sensor Harness Connector And Chassis Ground
    G10606753Courtesy of HYUNDAI MOTOR AMERICA
  5. Is voltage within specification?

    YES

    • Go to next procedure.

    NO
