Power Circuit Inspection

■ Check for Open/Short on Power Circuit

1. Ignition "OFF".
2. Disconnect Stop Lamp Switch.
3. Measure voltage between Brake Light Switch terminal and chassis ground.
4. Measure voltage between Brake Test Switch terminal and chassis ground.
5. Ignition "ON".
6. Measure voltage between Brake Light Switch terminal and chassis ground.
7. Measure voltage between Brake Test Switch terminal and chassis ground.

   Specification

   Test Condition	IG "OFF"	IG "ON"
   Brake Light Switch	Battery Voltage	Battery Voltage
   Brake Test Switch	0V	Battery Voltage

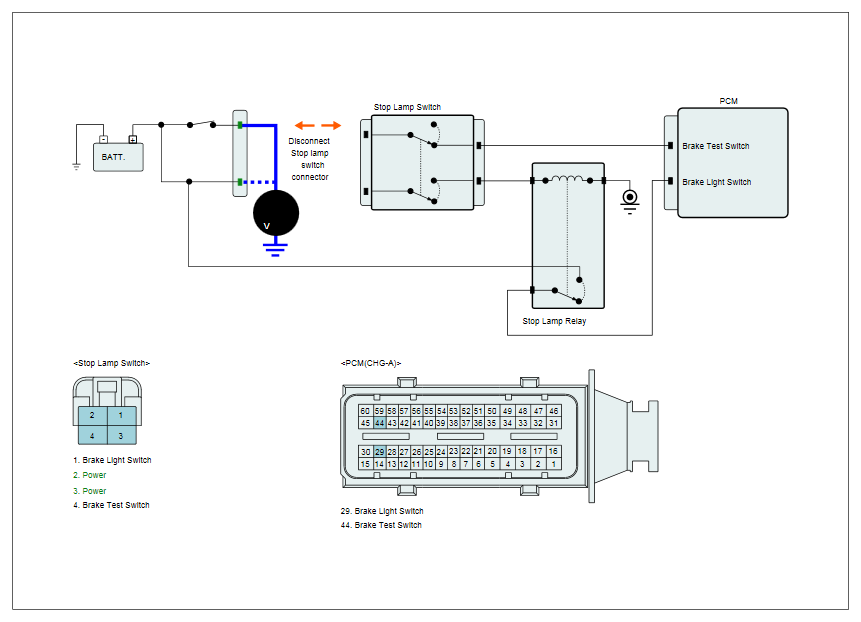

   Fig 1: Measuring Voltage Between Brake Light And Test Switch Terminal And Chassis Ground

   Courtesy of HYUNDAI MOTOR AMERICA
8. Is voltage within the specification?

   YES

   • Go to next procedure.

   NO

   • Check fuse between battery and Stop Lamp Switch.

     Check for Open or Short in power circuit.

     Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
