Ground Circuit Inspection

■ Check for Open in Ground Circuit

1. IG KEY 'OFF'.
2. Disconnect Fuel Level Sender 'A' harness connector.
3. Measure resistance between ground terminal of Fuel Level Sender 'A' harness connector and chassis ground.

   Specification:  Below 1Ω

   Fig 1: Measuring Resistance Between Ground Terminal Of Fuel Level Sender 'A' Harness Connector And Chassis Ground

   Courtesy of HYUNDAI MOTOR AMERICA

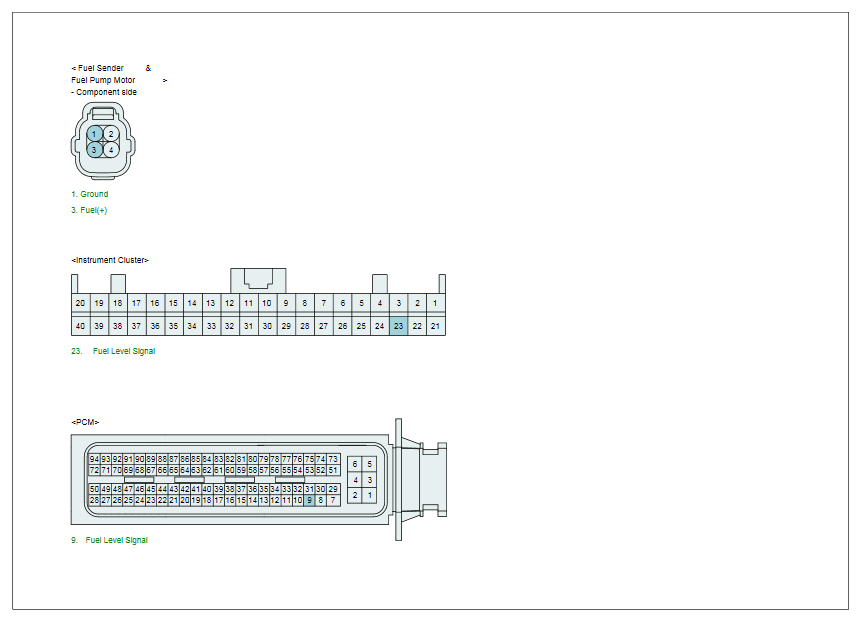

   Fig 2: Identifying Fuel Pump And Level Sensor Connector Terminals

   Courtesy of HYUNDAI MOTOR AMERICA
4. Is resistance within specification?

   YES

   • Go to next procedure.

   NO

   • Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
