Section 57 (Engine Control System Diagnosis (2 Of 2) (HEV))
>>
DTC P0461: Fuel Level Sensor 'A' Circuit Range/Performance
>>
General Information
>>
Diagnostic Circuit Diagram
Diagnostic Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

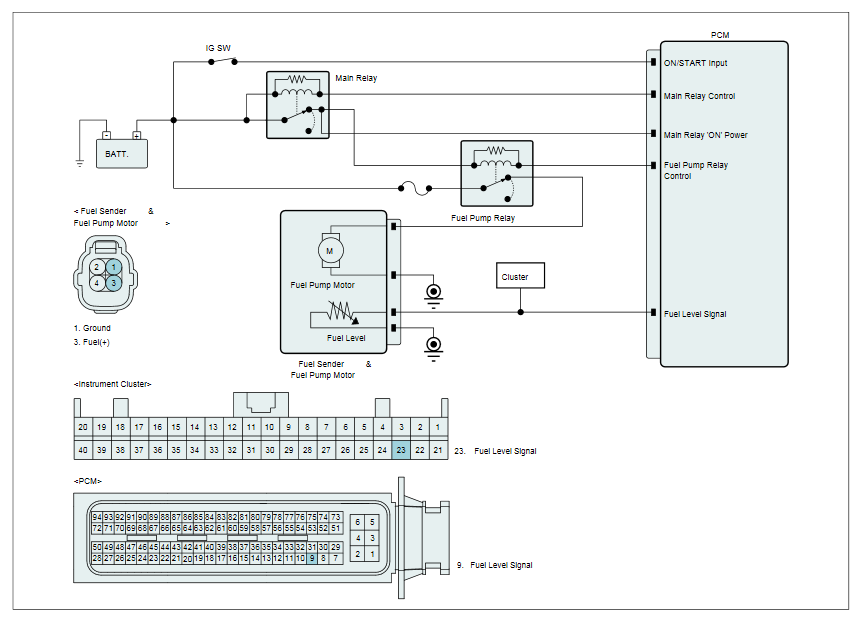

Fig 1: Fuel Pump Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
