Section 56 (Low Dc/Dc Converter Diagnosis (HEV))
>>
DTC U0110: Lost Communication With Drive Motor Control Module 'A' (C-CAN)
>>
General Information
>>
Signal Waveform & Data
Signal Waveform & Data
WARNING:
This page is about a different variant/trim than selected.

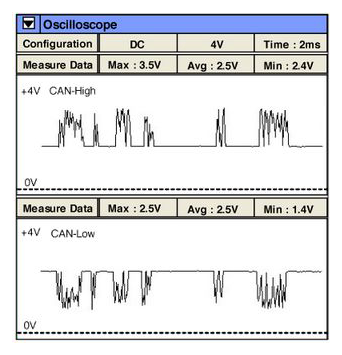

Fig 1: CAN-High & CAN Low Signal Waveform
Courtesy of HYUNDAI MOTOR AMERICA
