Monitor DTC Status
WARNING: This page is about a different variant/trim than selected.
- Ignition ON (SSB LED "BLUE") & Vehicle "STOP".
- Connect GDS and select "DTC Analysis" mode.

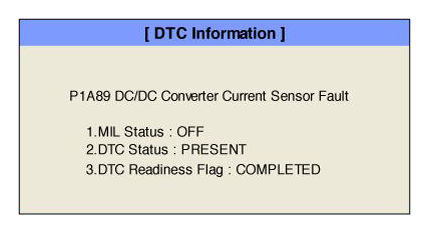

- Click "DTC Status" on the menu bar to view DTC information.
- Confirm that the "DTC Readiness Flag" indicates "COMPLETED". If not, drive the vehicle within conditions noted in Freeze Frame Data or Enable Conditions.
- Read the "DTC Status" parameter.
- Is parameter displayed "Present fault"?
YES
- Substitute with a known-good HPCU (LDC) and check for proper operation. If the problem is corrected, replace HPCU (LDC) and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- If it is history DTC, Fault was repaired and Control module's memory was not cleared. Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
