Monitor DTC Status

WARNING: This page is about a different variant/trim than selected.

Ignition ON (SSB LED "BLUE") & Vehicle "STOP".
Connect GDS and select "DTC Analysis" mode.
Click "DTC Status" on the menu bar to view DTC information.
Confirm that the "DTC Readiness Flag" indicates "COMPLETED". If not, drive the vehicle within conditions noted in Freeze Frame Data or Enable Conditions.
Read the "DTC Status" parameter.

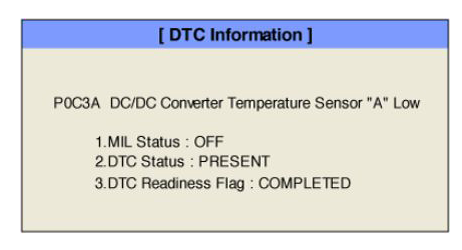

Fig 1: Screen Display - DTC Status
Courtesy of HYUNDAI MOTOR AMERICA

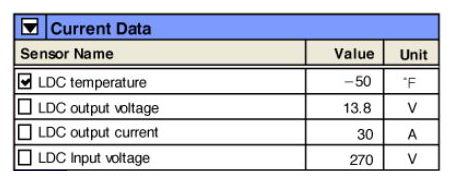

Fig 2: Screen Display - Current Data
Courtesy of HYUNDAI MOTOR AMERICA

Parameter of "LDC temperature" will be fixed at -50°F, if there is any fault in LDC Temperature.
Is parameter displayed "Present fault" & temperature indicated -50°F?
YES
- Substitute with a known-good HPCU (LDC) and check for proper operation. If the problem is corrected, replace HPCU (LDC) and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- If it is a history fault, Fault was repaired and Control module's memory was not cleared. Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
Fig 3: Identifying Power Relay Assembly
Courtesy of HYUNDAI MOTOR AMERICA
