Cooling Fan (Engine)
>>
Schematic Diagrams
>>
PWM Circuit Diagram
PWM Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

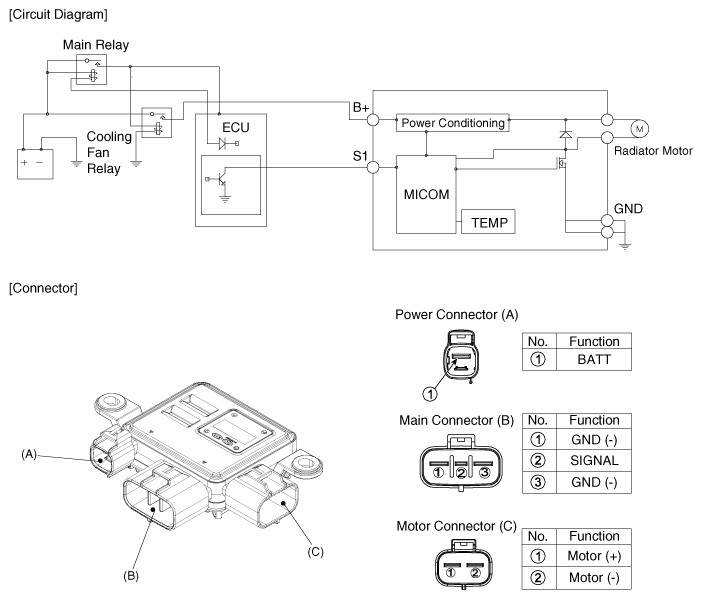

Fig 1: PWM Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
