Components and Components Location: Components

WARNING: This page is about a different variant/trim than selected.

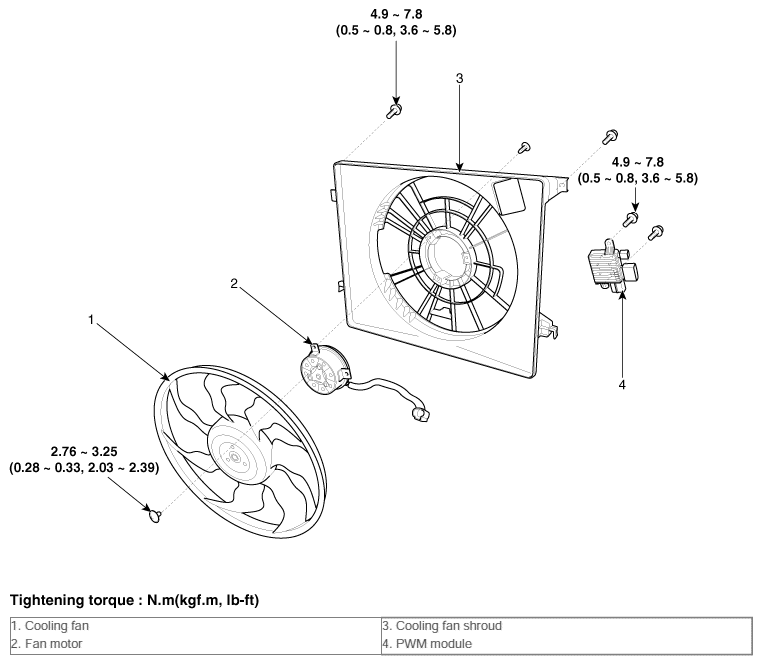

Fig 1: Identifying Cooling Fan Components With Torque Specifications
G10588353Courtesy of HYUNDAI MOTOR AMERICA
