Section 55 (Engine Cooling System (HEV))
>>
Active Air Flap (AAF)
>>
Schematic Diagram
Schematic Diagram
WARNING:
This page is about a different variant/trim than selected.

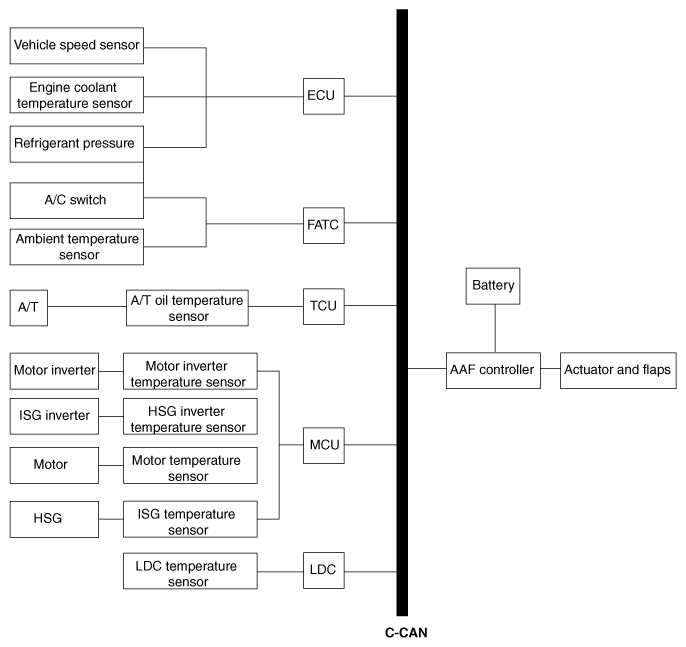

Fig 1: Active Air Flap Schematic Diagram
Courtesy of HYUNDAI MOTOR AMERICA
