Repair Procedures: Adjustment

WARNING: This page is about a different variant/trim than selected.
  1. After loosening the trunk lid hinge (A) mounting bolt, adjust the trunk lid by moving it up or down, or right or left.
  2. Adjust the trunk lid height by turning the trunk lid overslam bumpers (B).
  3. After loosening the trunk lid latch (C) mounting bolts, adjust the trunk lid latch by moving it up or down, or right or left.

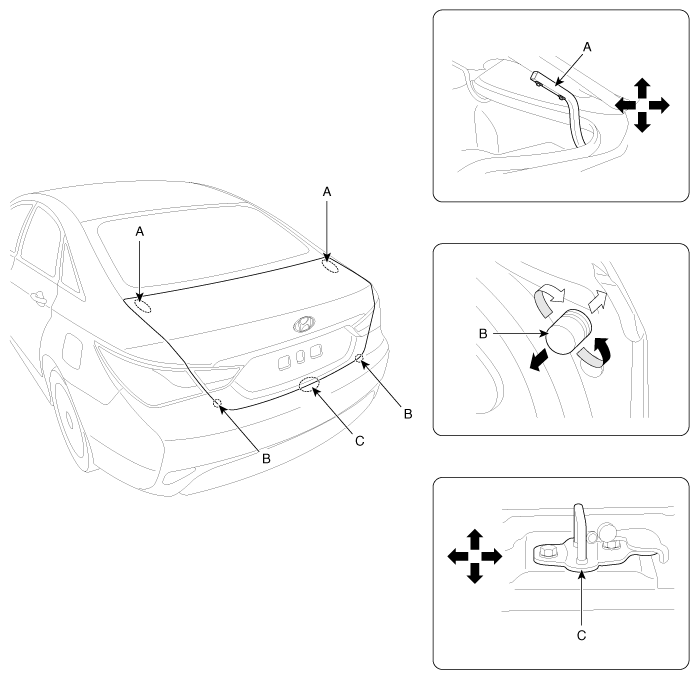

    Fig 1: Identifying Trunk Lid Adjustment Points
    G10589473Courtesy of HYUNDAI MOTOR AMERICA
