Components and Components Location: Components

WARNING: This page is about a different variant/trim than selected.

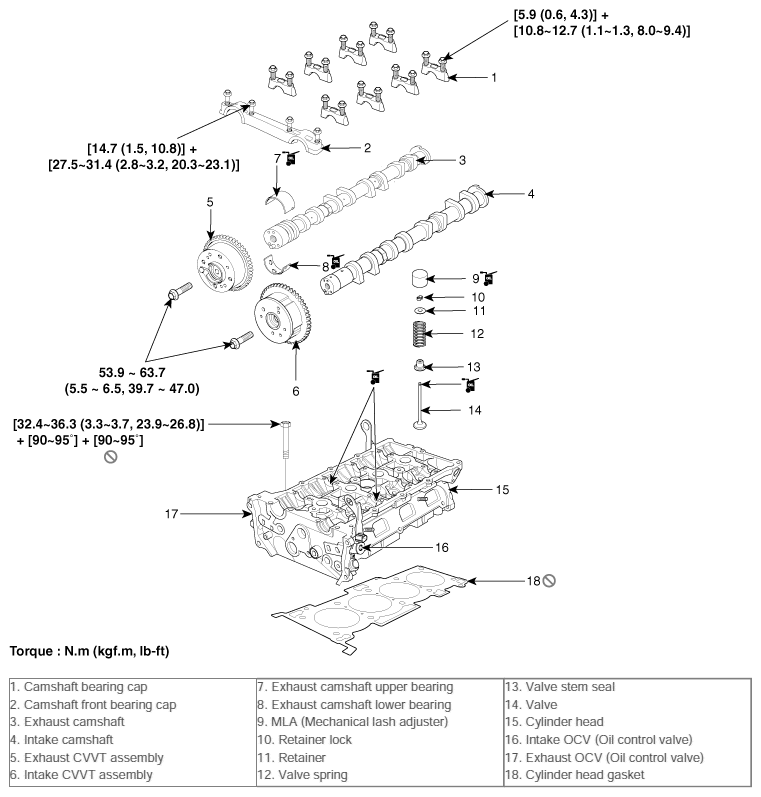

Fig 1: Identifying Cylinder Head Components With Torque Specification
G10588233Courtesy of HYUNDAI MOTOR AMERICA
