Power Circuit Inspection
WARNING: This page is about a different variant/trim than selected.
- IG "OFF".
- Disconnect FTPS harness connector.
- IG "ON".

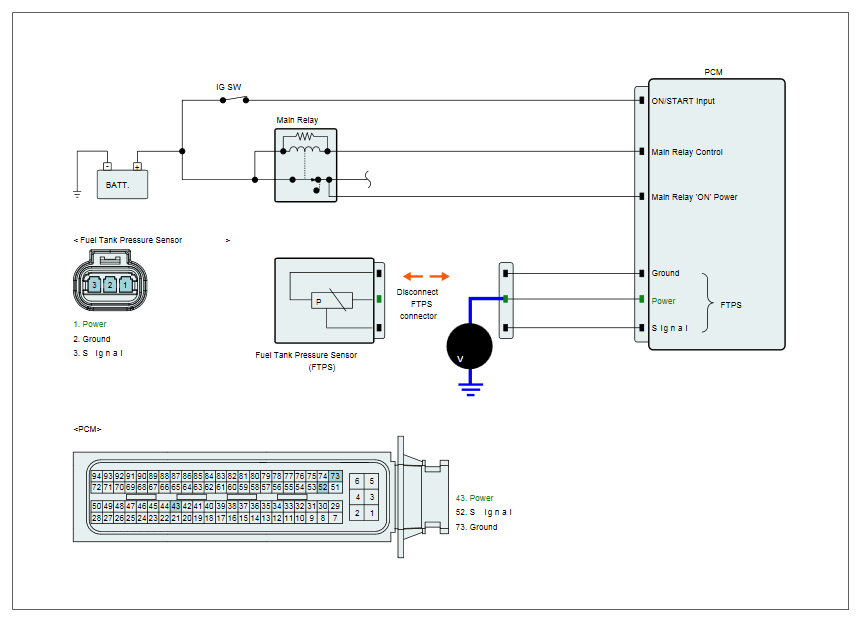

- Measure voltage between power terminal of FTPS harness connector and chassis ground.
Specification: Approx. 5V
- Is voltage within the specification?
YES
- Go to next step as below.
NO
- Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
