Power supply circuit inspection

WARNING: This page is about a different variant/trim than selected.
  1. Ignition "OFF"
  2. Disconnect NVLD connector.
  3. Ignition "ON" & Engine "OFF"
  4. Measure voltage between NVLD Power terminal of the NVLD harness connector and chassis ground.

    Specification:  B+

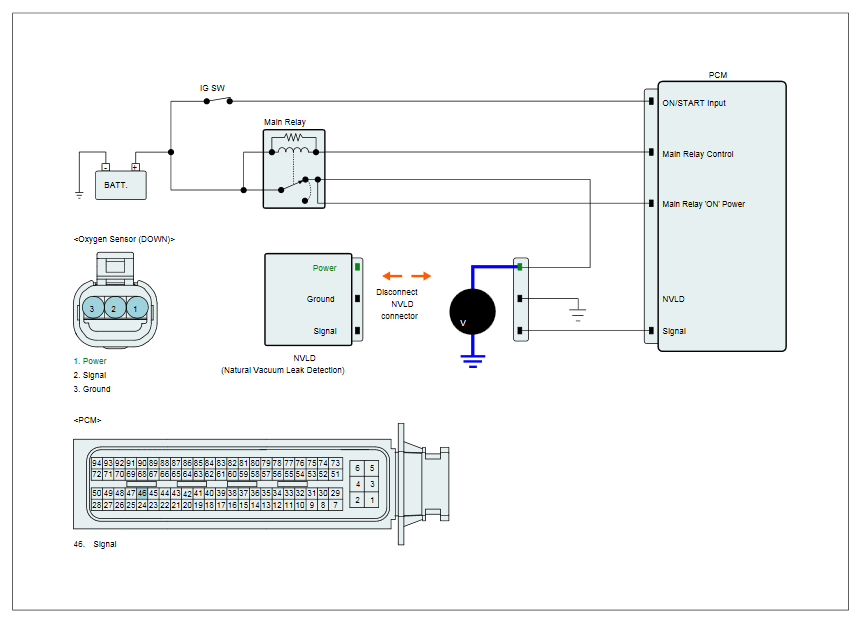

    Fig 1: Measuring Voltage Between NVLD Power Terminal Of NVLD Harness Connector And Chassis Ground
    G10606692Courtesy of HYUNDAI MOTOR AMERICA

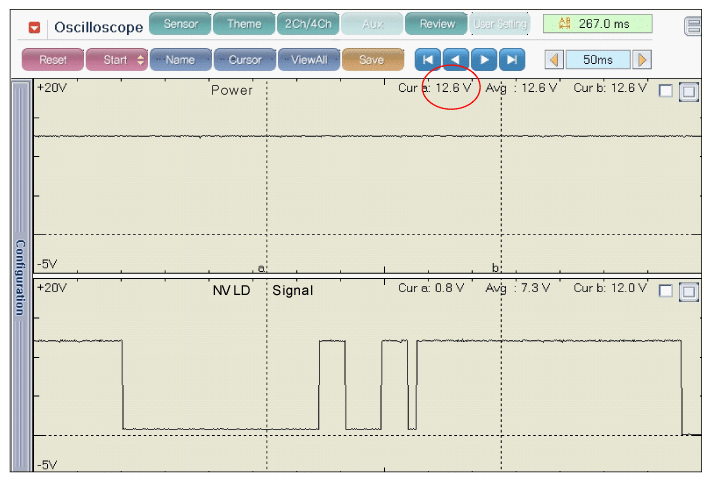

    Fig 2: Scantool Display - Signal Waveform Of NVLD
    G10606693Courtesy of HYUNDAI MOTOR AMERICA
