Control Circuit Inspection

WARNING: This page is about a different variant/trim than selected.

■ Check for Open in Control Circuit

IG "OFF".
Disconnect CCV harness connector.
IG "ON".
Measure voltage between control terminal of CCV harness connector and chassis ground.
Specification: Approx. 4V

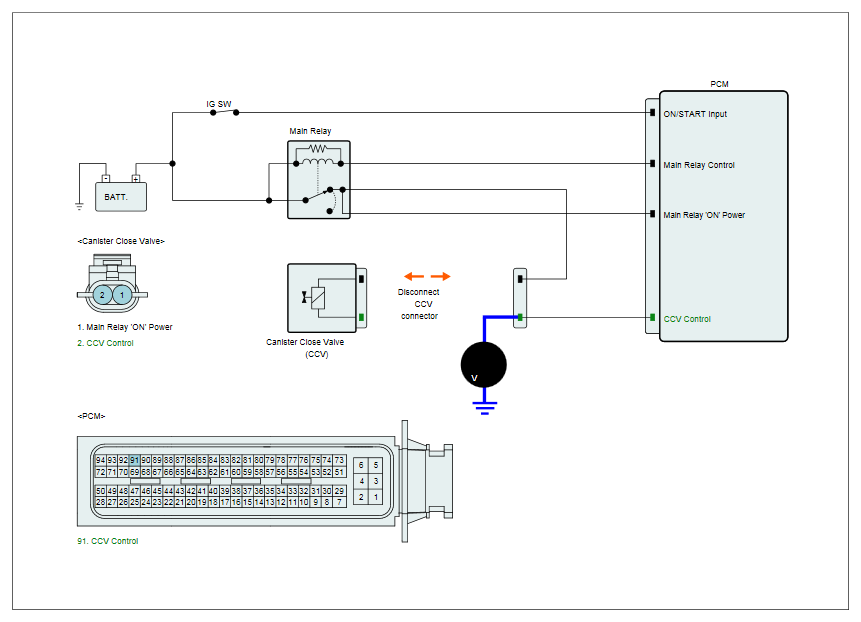

Fig 1: Measuring Voltage Between Control Terminal Of CCV Harness Connector And Chassis Ground
Courtesy of HYUNDAI MOTOR AMERICA
Is voltage within the specification?
YES
- Go to next step as below.
NO
- Case 0V: Repair short to ground in control circuit and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
  Case 12V: Repair short to power in control circuit and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
