Component Inspection

WARNING: This page is about a different variant/trim than selected.

■ Check CCV resistance

Measure resistance between control terminal and power terminal of CCV connector. (Component side)

Specification:

Canister Close Valve (CCV)	Normal Parameter At 20°C (68°F)
Resistance (Ω)	19.8~21.8Ω

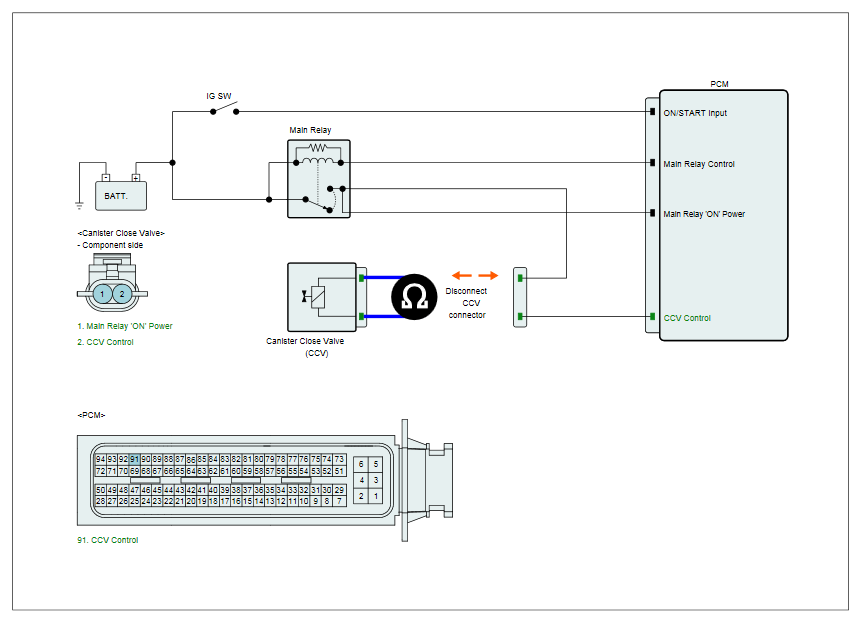

Fig 1: Measuring Resistance Between Control Terminal And Power Terminal Of CCV Connector (Component Side)

Courtesy of HYUNDAI MOTOR AMERICA

Is the measured resistance within specification?
YES
- Check for poor connection between PCM and component: backed out terminal, improper mating, broken locks or poor terminal to wire connection. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Substitute with a known-good component and check for proper operation. If the problem is corrected, replace it and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
