Power Circuit Inspection
WARNING: This page is about a different variant/trim than selected.
■ Check for Short to Ground in Power Circuit
- IG "OFF".
- Disconnect CCV harness connector.

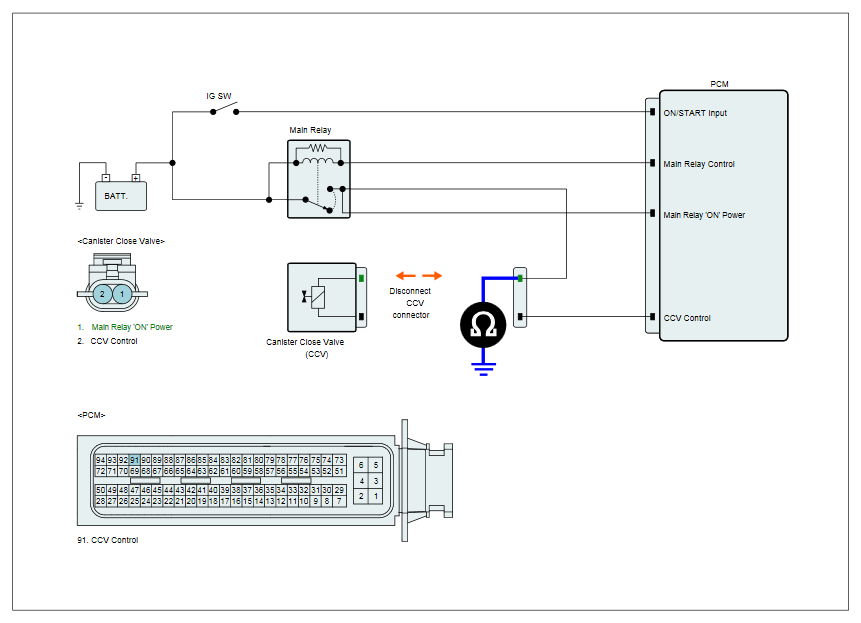

- Measure resistance between power terminal of CCV harness connector and chassis ground.
Specification: Infinite
- Is resistance within the specification?
YES
- Go to next step as below.
NO
- Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
■ Check for Open in Power Circuit
- IG "OFF".
- Disconnect CCV harness connector.
- IG "ON".

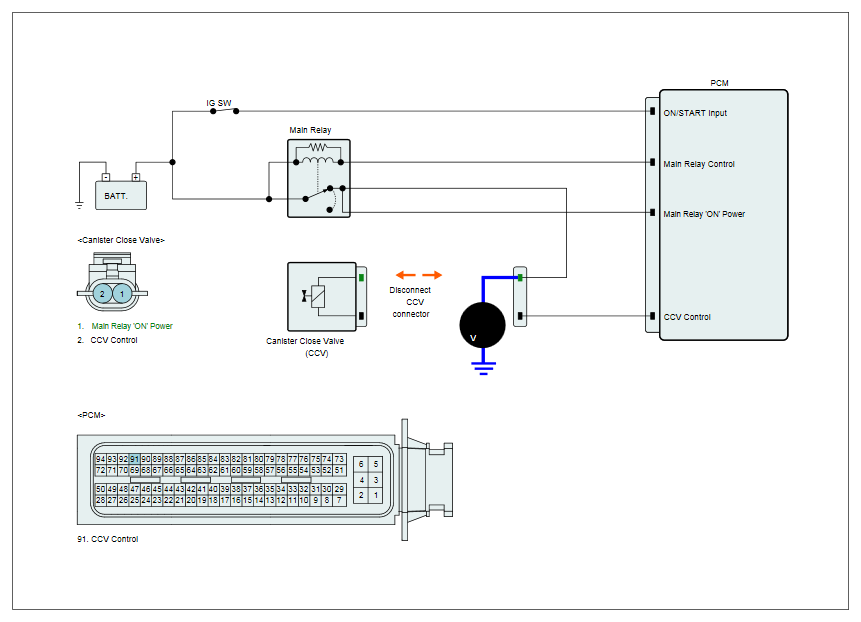

- Measure voltage between power terminal of CCV harness connector and chassis ground.
Specification: Approx. 12V
- Is voltage within the specification?
YES
- Go to next step as below.
NO
- Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
