Control Circuit Inspection
WARNING: This page is about a different variant/trim than selected.

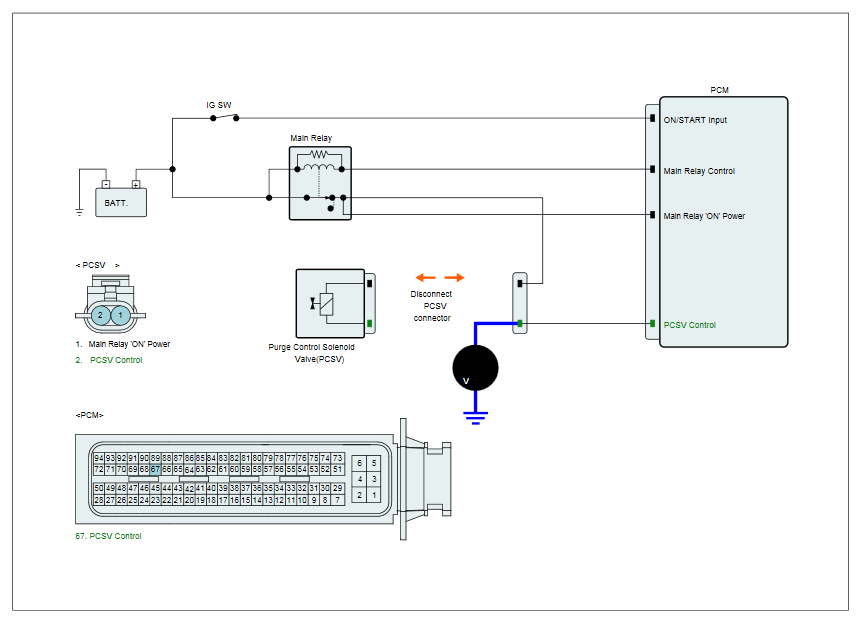

- Ignition "ON" & Engine "OFF"
- Measure voltage between control terminal of PCSV harness connector and chassis ground.
Specification: Approx. 4~5V
- Is voltage within the specification?
YES
- Go to next step as below.
NO
- Check control circuit for open or short. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
