Signal Waveform & Data

WARNING: This page is about a different variant/trim than selected.

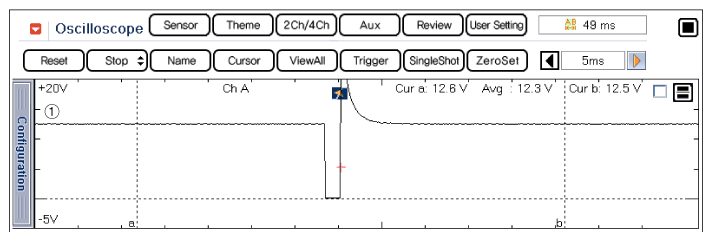

Fig 1: Scantool Display - Signal Waveform Of PCSV Control (Key-On)
G10606673Courtesy of HYUNDAI MOTOR AMERICA

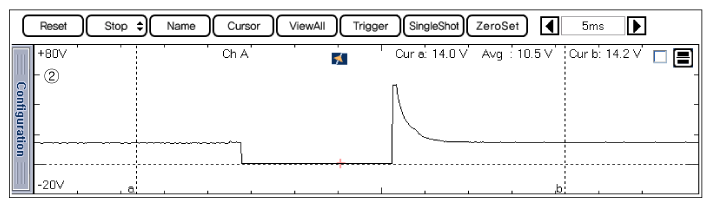

Fig 2: Scantool Display - Signal Waveform Of PCSV Control (Idle)
G10606674Courtesy of HYUNDAI MOTOR AMERICA

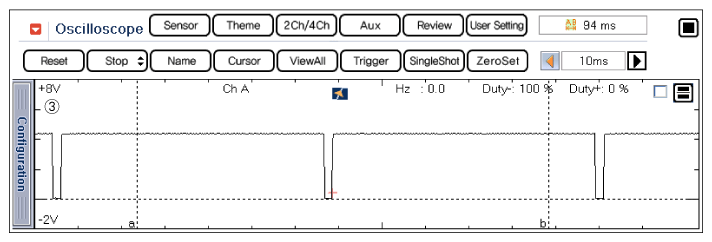

Fig 3: Scantool Display - Signal Waveform Of PCSV Control (Control Circuit Open/Key-On/PCM Side)
G10606675Courtesy of HYUNDAI MOTOR AMERICA
  1. PCSV Control Waveform (Key-On)
  2. PCSV Control Waveform (Idle)
  3. PCSV Control Waveform (Control Circuit Open/Key-On/PCM Side)
