Control Circuit Inspection

WARNING: This page is about a different variant/trim than selected.

Measure voltage between power terminal of the PCSV harness connector and chassis ground.
Specification: Approx. 4~5V

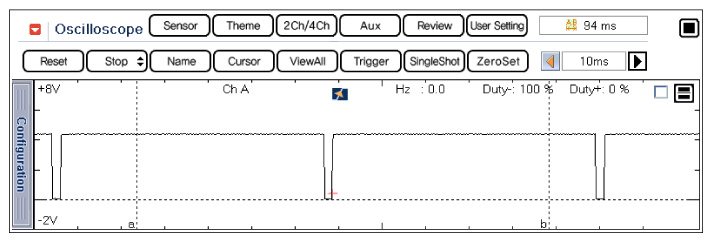

Fig 1: Scantool Display - Signal Waveform Of PCSV
Courtesy of HYUNDAI MOTOR AMERICA

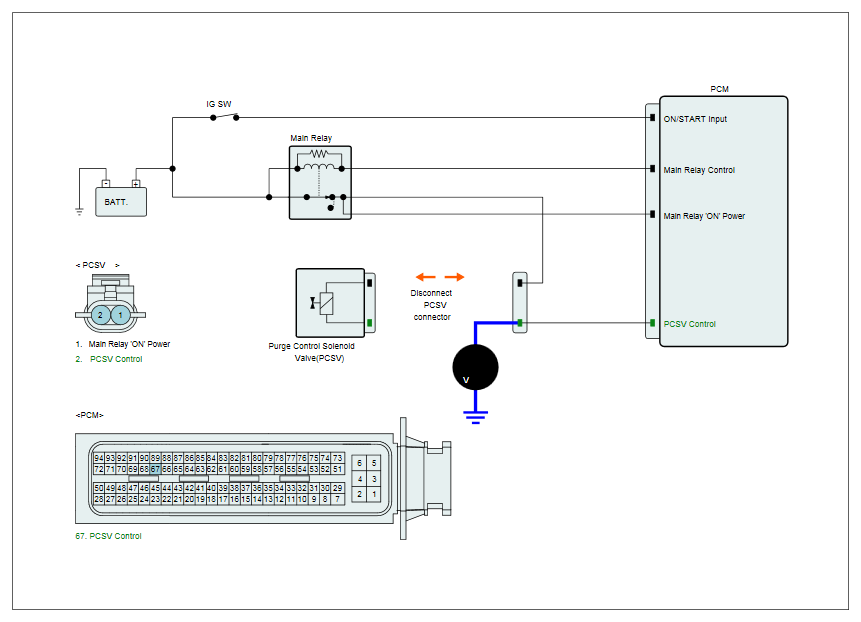

Fig 2: Measuring Voltage Between Power Terminal Of PCSV Harness Connector And Chassis Ground
Courtesy of HYUNDAI MOTOR AMERICA
Is voltage within the specification?
YES
- Go to next step as below.
NO
- Check control circuit for open or short. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
