Component Inspection

WARNING: This page is about a different variant/trim than selected.

Measure resistance between power terminal and signal terminal of PCSV connector (Component side).

Temp.(°C)	Temp.(°C)	PCSV Resistance(Ω)
20	68	19 ~ 22

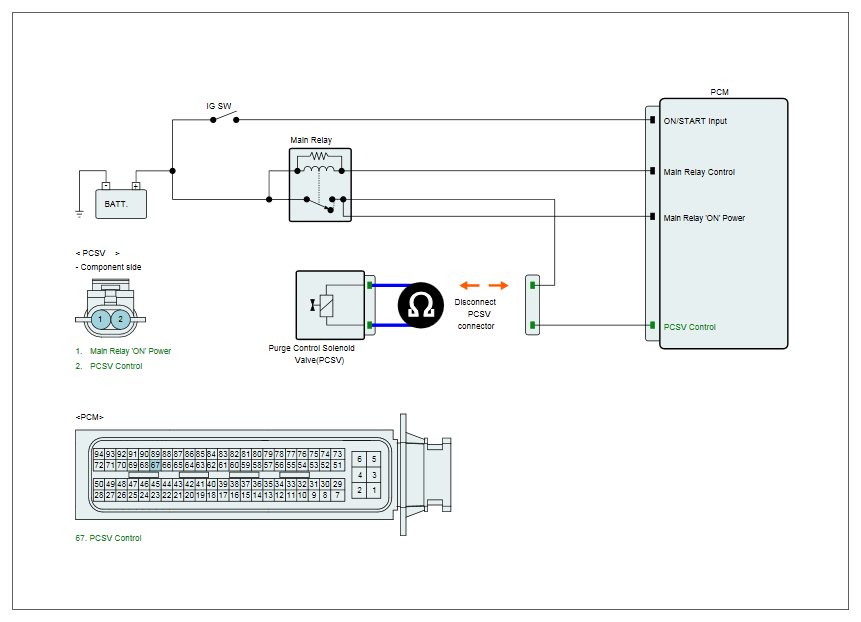

Fig 1: Measuring Resistance Between Power Terminal And Signal Terminal Of PCSV Connector (Component Side)

Courtesy of HYUNDAI MOTOR AMERICA

Is resistance within the specification?
YES
- Go to next step as below.
NO
- Check PCSV for contamination, deterioration, or damage. Substitute with a known-good PCSV and check for proper operation. If the problem is corrected, replace PCSV and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
