Power Circuit Inspection

WARNING: This page is about a different variant/trim than selected.

Ignition "OFF"
Disconnect CMPS #2 sensor connector
Ignition "ON" & Engine "OFF"
Measure voltage between power terminal of CMPS #2 harness connector and chassis ground.
Specification: Approx. B+

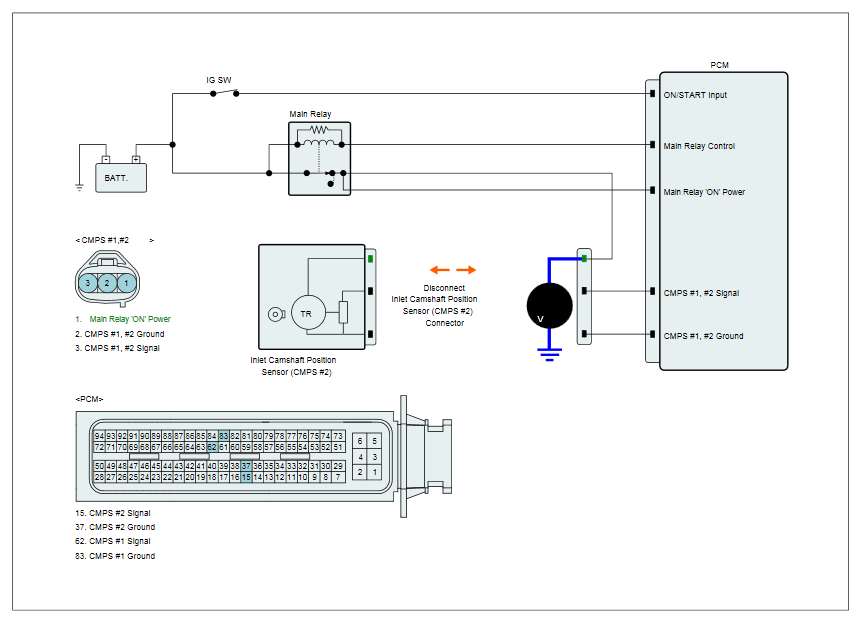

Fig 1: Measuring Voltage Between Power Terminal Of CMPS #2 Harness Connector And Chassis Ground
Courtesy of HYUNDAI MOTOR AMERICA
Is voltage within the specification?
YES
- Go to "GROUND CIRCUIT INSPECTION " procedure.
NO
- Check for a open in the power supply circuit between the main relay and the CMPS.
  Especially check for open or blown 10A sensor fuse.

  Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
