Signal Waveform & Data
WARNING: This page is about a different variant/trim than selected.

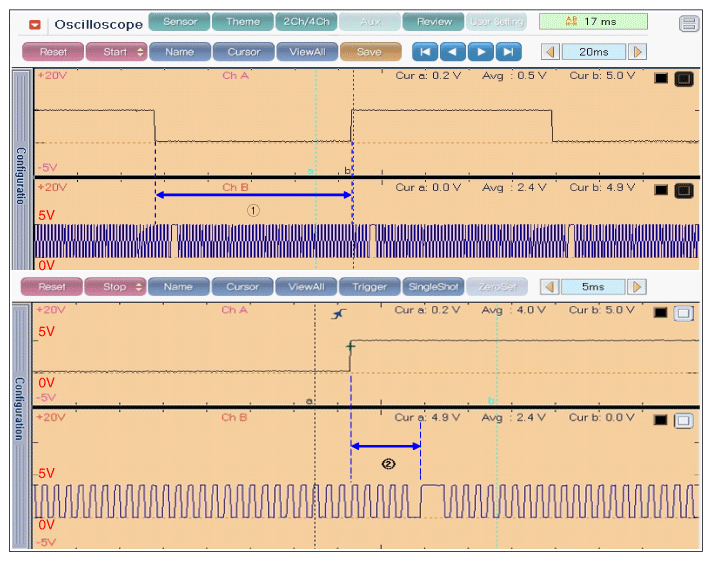

Fig 1: Scantool Display - Signal Waveform Of CKPS (Including Missing Tooth) During Semi-Cycle Of CMPS #2
- There are 60 signals of CKPS (Including missing tooth) during the semi-cycle of CMPS #2.
- There are 3~5 signals of CKPS between the switching point of CMPS #2 and the missing tooth of CKPS.
