Signal Waveform & Data

WARNING: This page is about a different variant/trim than selected.

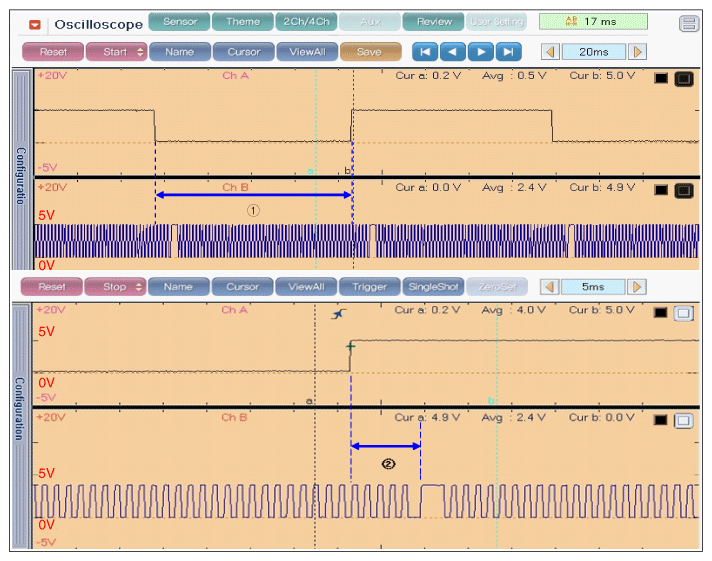

Fig 1: Scantool Display - Signal Waveform Of CKPS (Including Missing Tooth) During Semi-Cycle Of CMPS #1
G10606634Courtesy of HYUNDAI MOTOR AMERICA
  1. There are 60 signals of CKPS (Including missing tooth) during the semi-cycle of CMPS #1.
  2. There are 3~5 signals of CKPS between the switching point of CMPS #1 and the missing tooth of CKPS.
