Section 125 (Engine Control System Diagnosis (1 Of 2) (HEV))
>>
DTC P0340: Camshaft Position Sensor 'A' Circuit (Single Sensor)
>>
General Information
>>
Component Location
Component Location
WARNING:
This page is about a different variant/trim than selected.

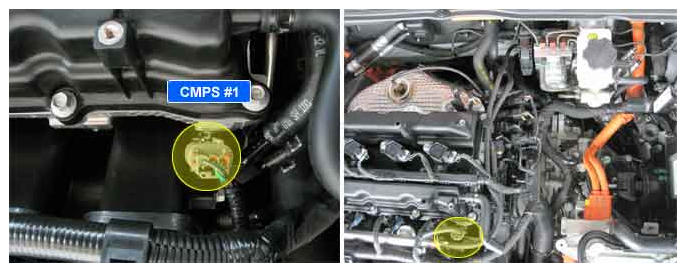

Fig 1: Camshaft Position Sensor #1 Location
Courtesy of HYUNDAI MOTOR AMERICA
