Signal Circuit Inspection

WARNING: This page is about a different variant/trim than selected.

Check for open or short to ground in signal circuit
1. Ignition "ON" & Engine "OFF"
2. Measure voltage between signal terminal of CKPS harness connector and chassis ground
  Specification: Approx. 5V

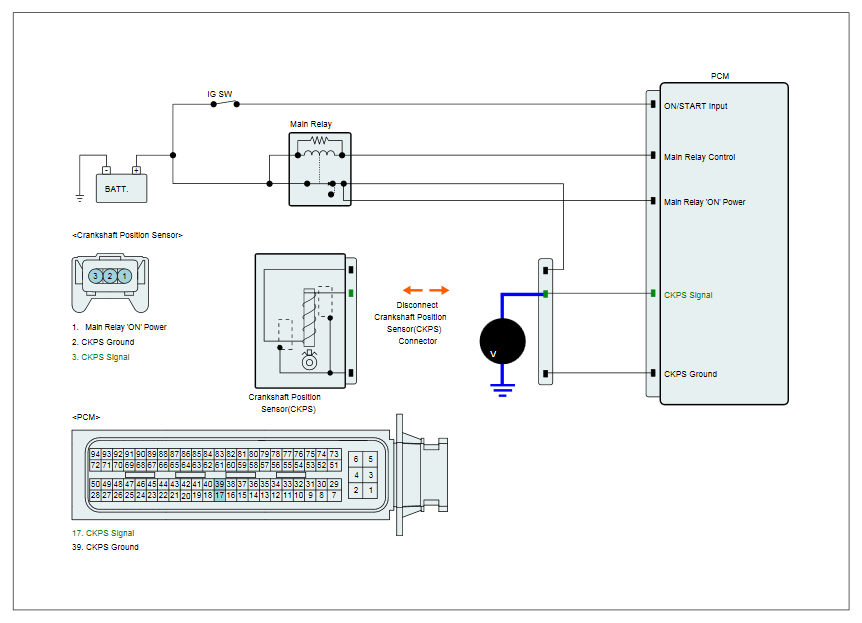

  Fig 1: Measuring Voltage Between Signal Terminal Of CKPS Harness Connector And Chassis Ground
  Courtesy of HYUNDAI MOTOR AMERICA
3. Is voltage within the specification?
  YES
  - Go to next step as below
  NO
  - Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
Check for short to power in signal circuit
1. Ignition "OFF"
2. Disconnect PCM connector
3. Ignition "ON" & Engine "OFF"
4. Measure voltage between signal terminal of CKPS harness connector and chassis ground.
  Specification: Approx. 0V

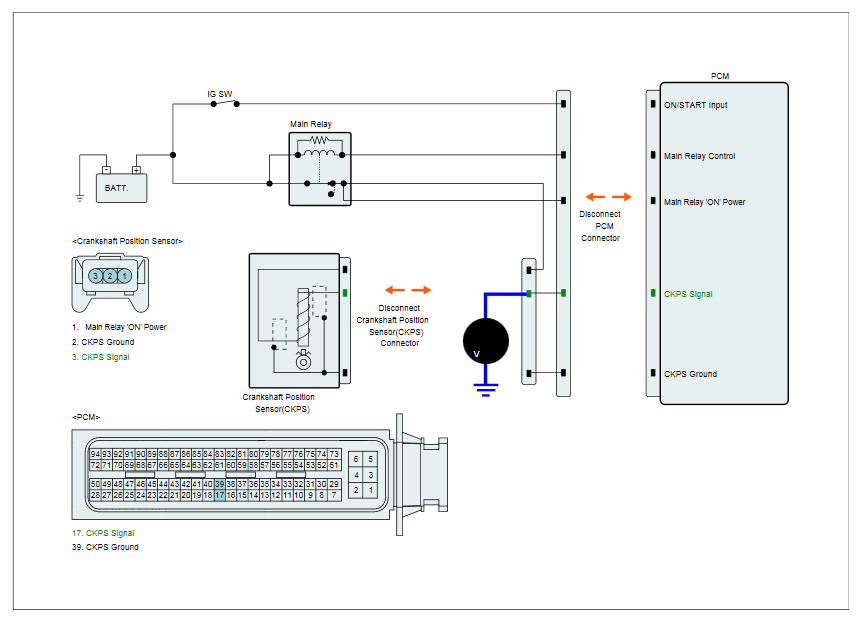

  Fig 2: Measuring Voltage Between Signal Terminal Of CKPS Harness Connector And Chassis Ground
  Courtesy of HYUNDAI MOTOR AMERICA
5. Is voltage within the specification?
  YES
  - Go to next step as below
  NO
  - Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
