Ground Circuit Inspection

WARNING: This page is about a different variant/trim than selected.

Ignition "OFF"
Disconnect Knock sensor and PCM connectors
Measure resistance of the ground circuit between the sensor connector and the PCM connector.
Specification: Approx. 0Ω

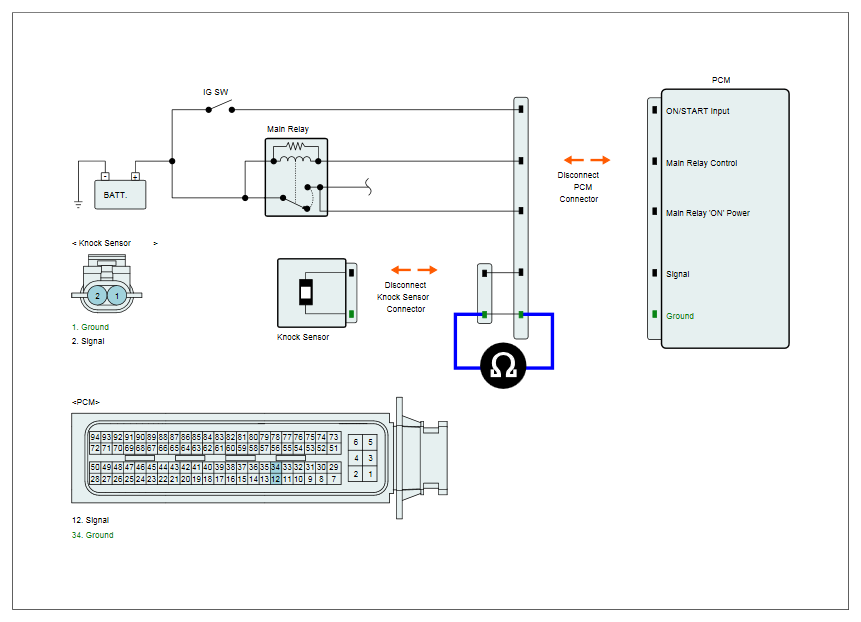

Fig 1: Measuring Resistance Of Ground Circuit Between Sensor Connector And PCM Connector
Courtesy of HYUNDAI MOTOR AMERICA
Is resistance within the specification?
YES
- Go to "SIGNAL CIRCUIT INSPECTION " procedure.
NO
- Check for an open in ground circuit. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
