Section 125 (Engine Control System Diagnosis (1 Of 2) (HEV))
>>
DTC P0326: Knock Sensor 1 Circuit Range/Performance (Bank 1 Or Single Sensor)
>>
General Information
>>
Diagnostic Circuit Diagram
Diagnostic Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

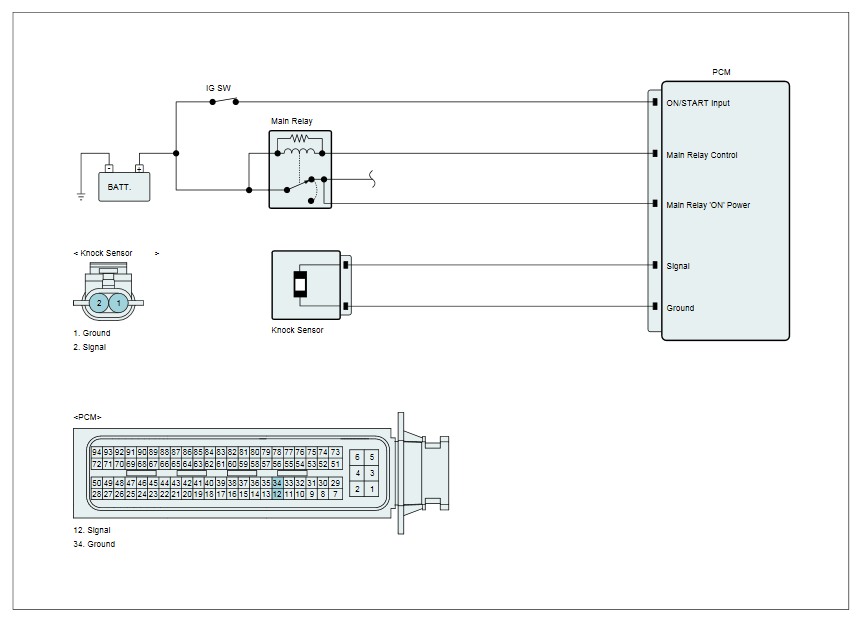

Fig 1: Knock Sensor Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
