Power Circuit Inspection

WARNING: This page is about a different variant/trim than selected.

Ignition "ON" & Engine "OFF".
Measure voltage between power terminal of the injector harness connector and chassis ground.
Specification: Approx. B+

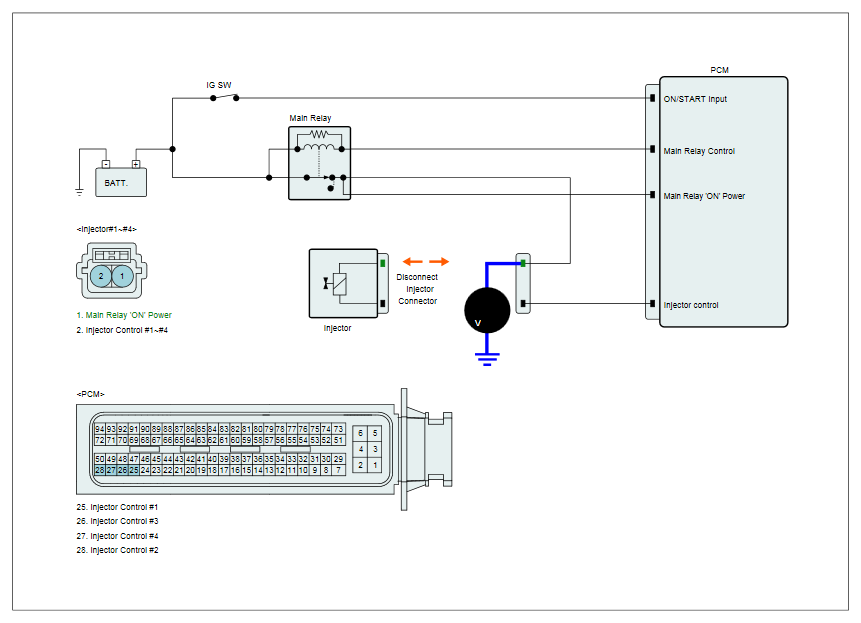

Fig 1: Measuring Voltage Between Power Terminal Of Injector Harness Connector And Chassis Ground
Courtesy of HYUNDAI MOTOR AMERICA
Is voltage within the specification?
YES
- Go to "CONTROL CIRCUIT INSPECTION " procedure.
NO
- Check for a open in the power supply circuit between the main relay and the Injector.
  Check for open or blown 15A injector fuse.

  Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
