Ground Circuit Inspection

WARNING: This page is about a different variant/trim than selected.

■ Check for Open in Ground Circuit

IG KEY OFF.
Disconnect etc. connector and PCM connector.
Measure resistance between both ends of TPS ground line.
Specification: Below 1Ω.

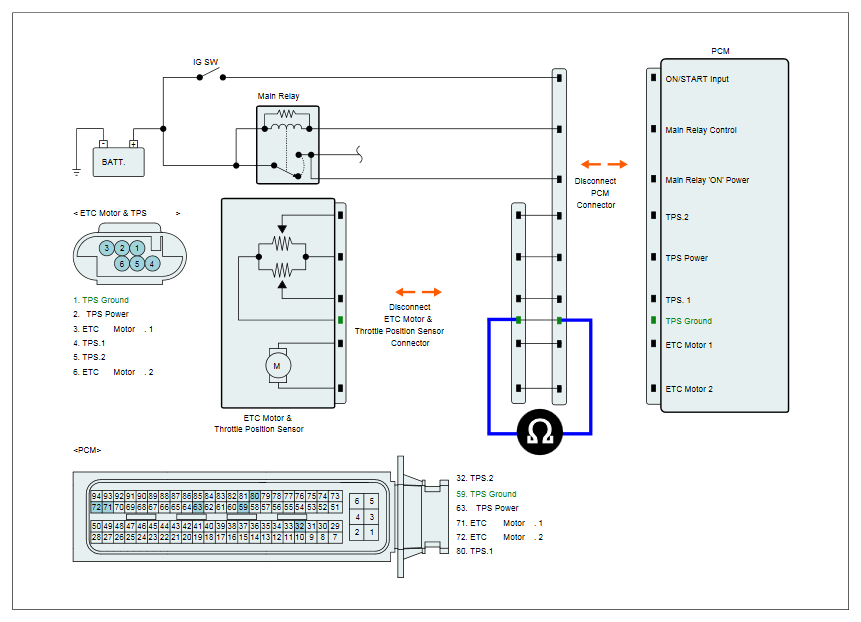

Fig 1: Measuring Resistance Between Both Ends Of TPS Ground Line
Courtesy of HYUNDAI MOTOR AMERICA
Is resistance within specification?
YES
- Go to next procedure.
NO
- Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
