Signal Waveform & Data

WARNING: This page is about a different variant/trim than selected.

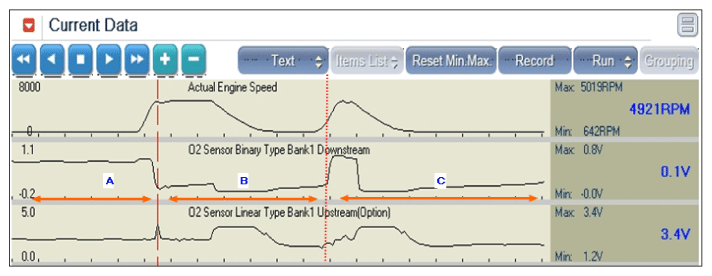

Fig 1: Scantool Display - Signal Waveform In Current Data

Courtesy of HYUNDAI MOTOR AMERICA

Sector A: Signal Normal

Sector B: Signal Fluctuation

Sector C: Signal Recovery
