Signal Circuit Inspection

WARNING: This page is about a different variant/trim than selected.

■ Check for Short to Power in Signal Circuit

IG KEY OFF.
Disconnect etc. connector.
IG KEY ON.
Measure voltage between TPS1 signal terminal of etc. harness connector and chassis ground.
Specification: Approx. 4 V

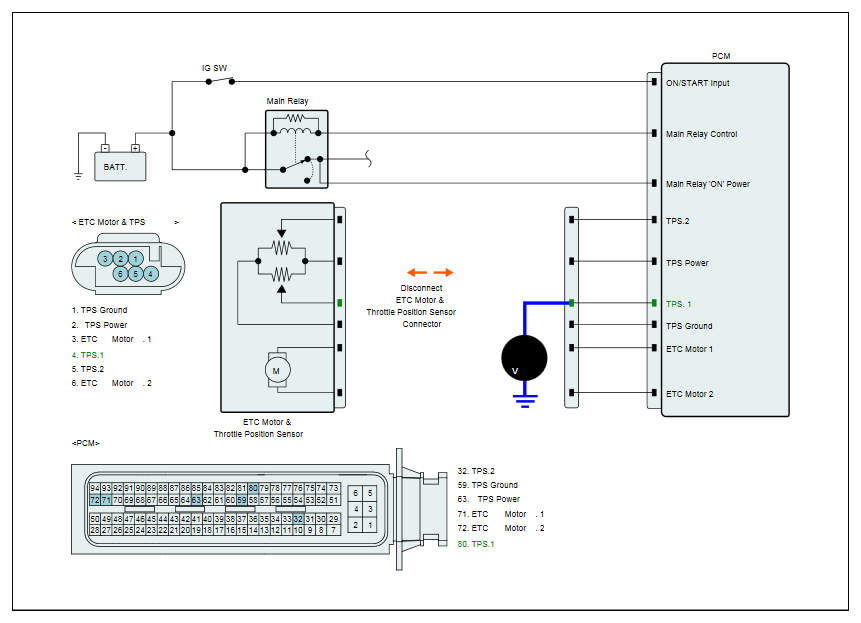

Fig 1: Measuring Voltage Between TPS1 Signal Terminal Of etc. Harness Connector And Chassis Ground
Courtesy of HYUNDAI MOTOR AMERICA
Is voltage within specification?
YES
- Go to next procedure.
NO
- Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
