Signal Circuit Inspection
WARNING: This page is about a different variant/trim than selected.

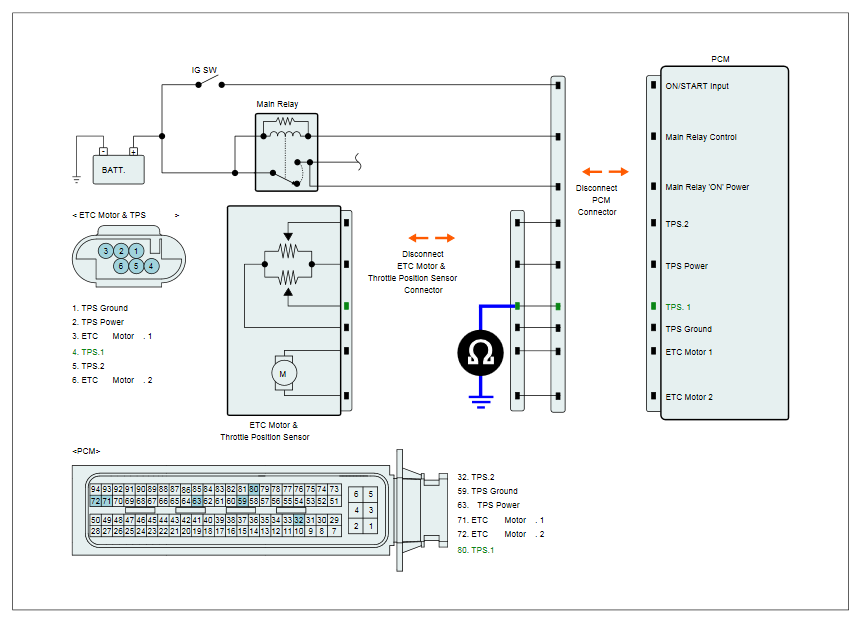

■ Check for Short to Ground in Signal Circuit
- IG KEY OFF.
- Disconnect etc. connector and PCM connector.
- Measure resistance between TPS1 signal terminal of etc. harness connector and chassis ground.
Specification: Infinite
- Is resistance within specification?
YES
- Go to next procedure.
NO
- Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

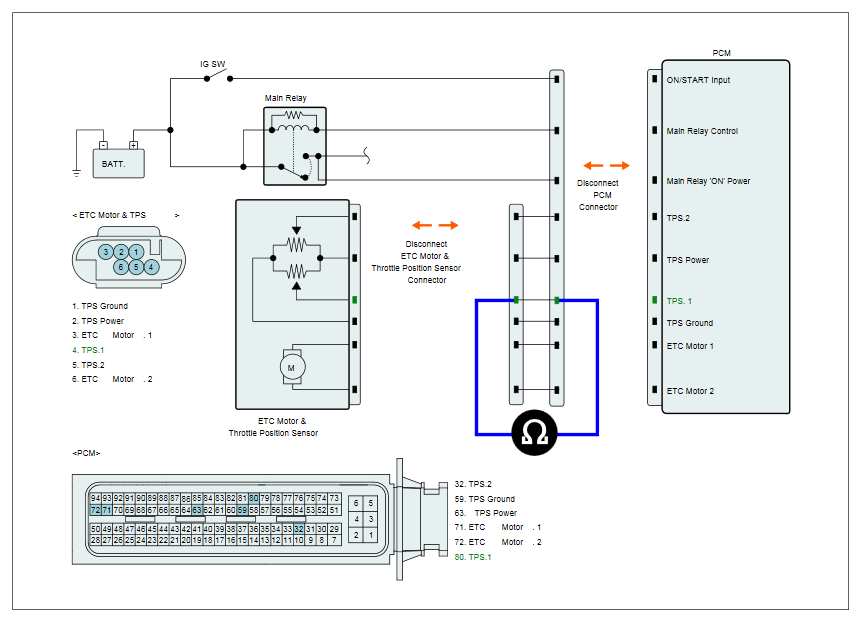

■ Check for Open in Signal Circuit
- IG KEY OFF.
- Disconnect etc. connector and PCM connector.
- Measure resistance between both ends of TPS1 signal line.
Specification: Below 1Ω.
- Is resistance within specification?
YES
- Go to next procedure.
NO
- Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
