Diagnostic Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

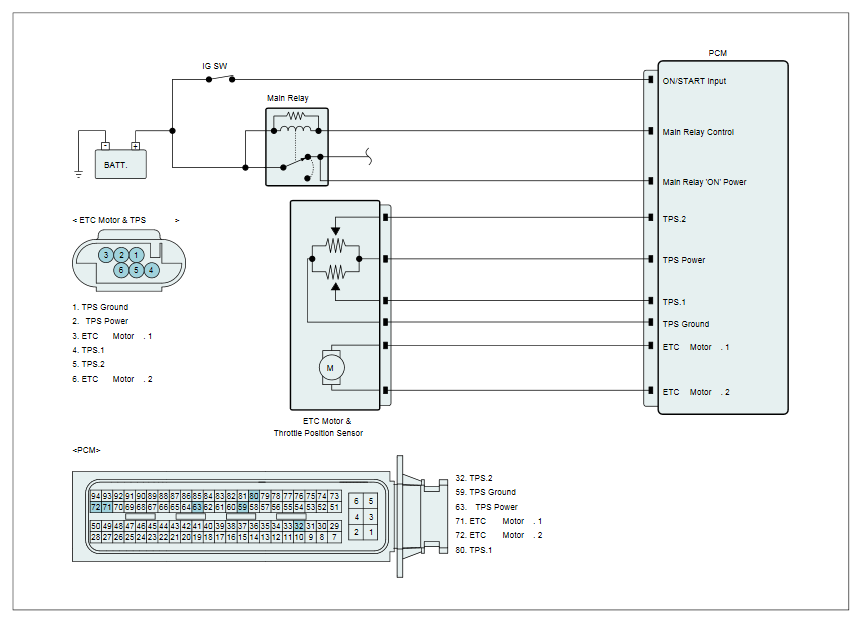

Fig 1: Electronic Throttle Control Motor And Throttle Position Sensor Circuit Diagram
G10606436Courtesy of HYUNDAI MOTOR AMERICA
