Ground Circuit Inspection
WARNING: This page is about a different variant/trim than selected.
- Ignition "OFF".
- Disconnect ECTS connector.

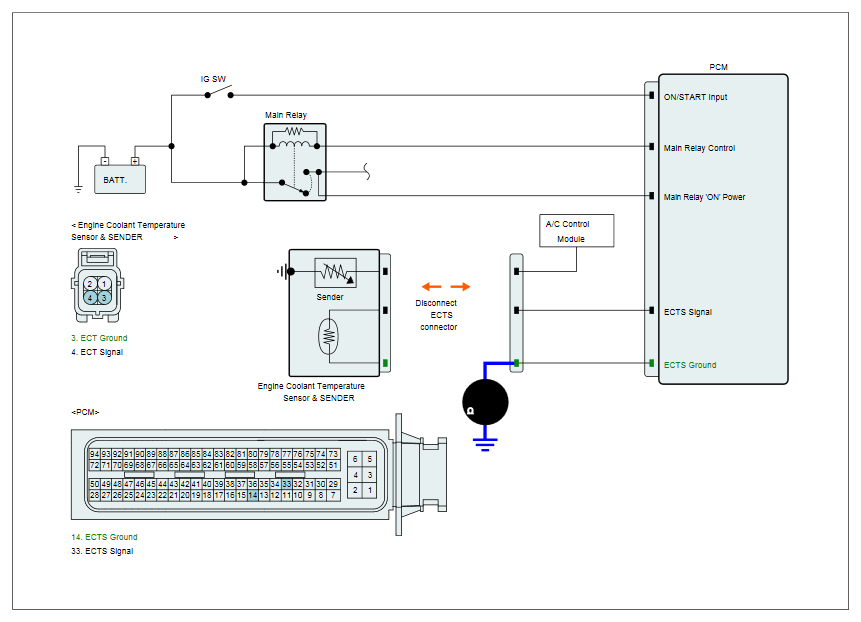

- Measure the resistance between ground terminal of ECTS harness connector and chassis ground.
Specification: Approx. 0Ω
- Is the resistance within the specification?
YES
- Go to next step as below.
NO
- Repair open circuit and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
