Component Inspection

WARNING: This page is about a different variant/trim than selected.

Measure the resistance between signal terminal and ground terminal of ECTS connector. (Component side)

TEMPERATURE RESISTANCE SPECIFICATION

Temp.(°C)	Temp.(°F)	Resistance(kΩ)	Temp.(°C)	Temp.(°F)	Resistance(kΩ)
-20	-4	14.1 ~ 16.8	40	104	Approx. 1.2
0	32	Approx. 5.8	60	140	Approx. 0.6
20	68	2.3 ~ 2.6	80	176	Approx. 0.3

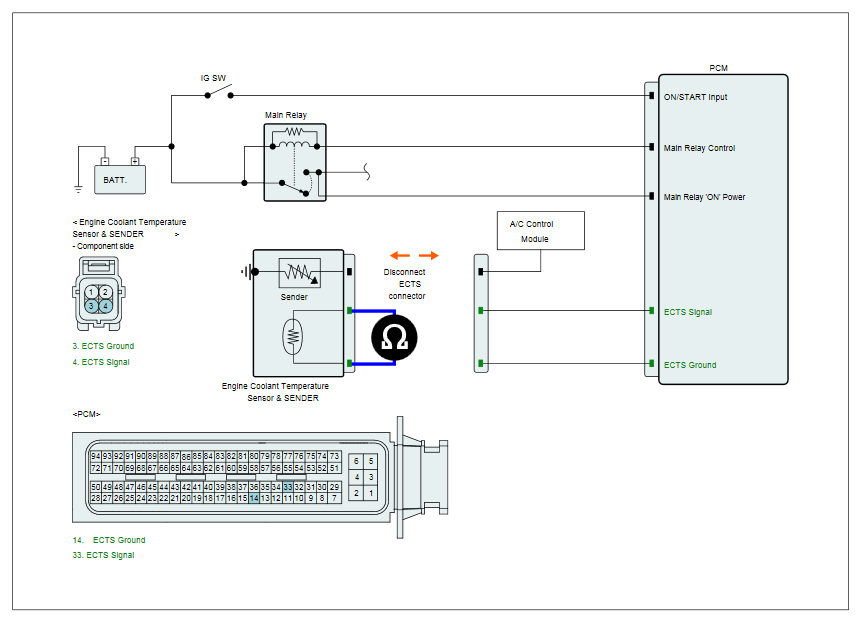

Fig 1: Measuring Resistance Between Signal Terminal And Ground Terminal Of ECTS Connector (Component Side)

Courtesy of HYUNDAI MOTOR AMERICA

Is the resistance within the specification?
YES
- Check for poor connection between PCM and component: backed out terminal, improper mating, broken locks or poor terminal to wire connection. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Check ECTS for contamination, deterioration, or damage. Substitute with a known-good ECTS and check for proper operation. If the problem is corrected, replace ECTS and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
