Signal Circuit Inspection
WARNING: This page is about a different variant/trim than selected.
- Ignition "OFF".
- Disconnect ECTS connector and PCM connector.

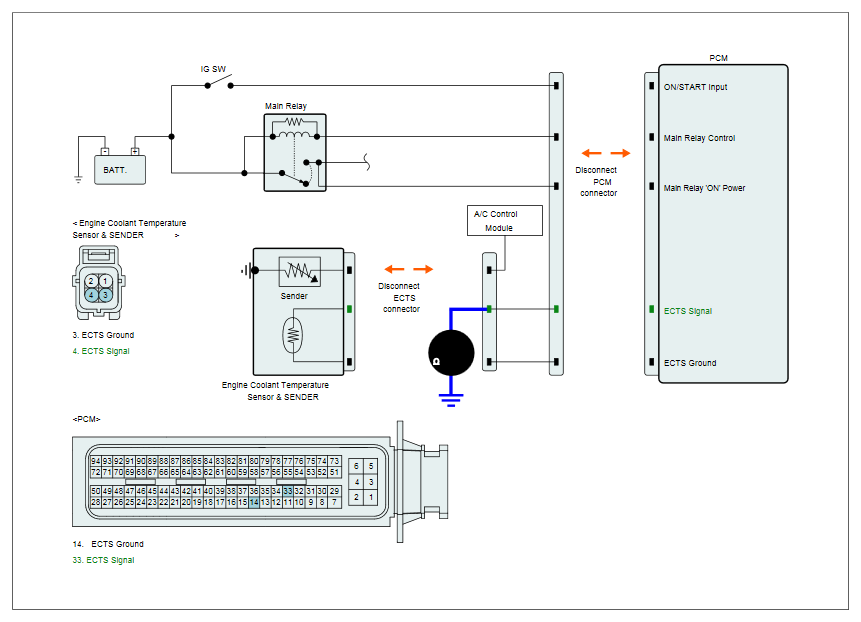

- Measure the resistance between signal terminal of ECTS harness connector and chassis ground.
Specification: Infinite
- Is the resistance within the specification?
YES
- Go to "TERMINAL AND CONNECTOR INSPECTION " procedure.
NO
- Repair short to ground in harness and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
