Home >> Hyundai >> 2015 >> Sonata Eco >> Repair and Diagnosis >> External Pages >> Different variant/trim >> Section 125 (Engine Control System Diagnosis (1 Of 2) (HEV)) >> DTC P0113: Intake Air Temperature Sensor 1 Circuit High Input >> General Information >> Diagnostic Circuit Diagram

Diagnostic Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

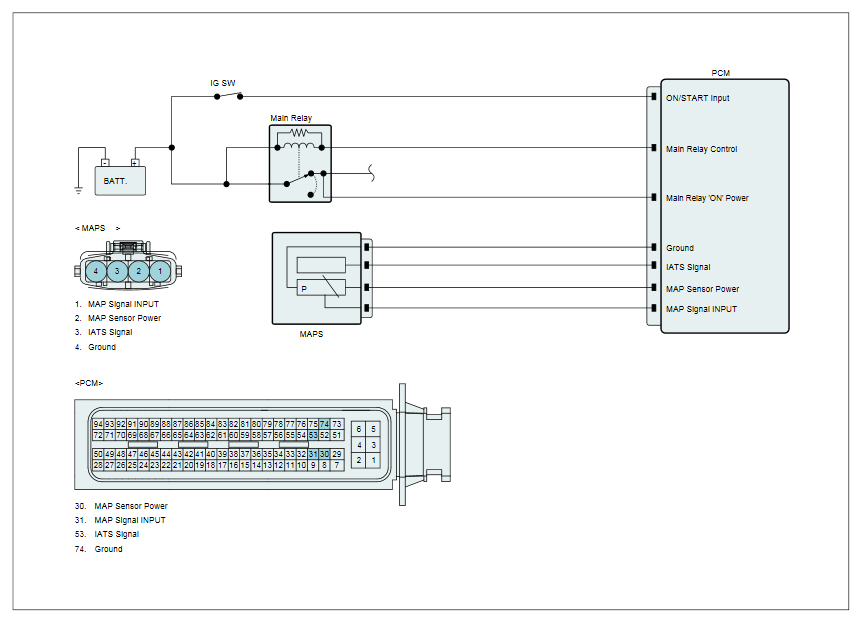

Fig 1: Manifold Absolute Pressure & Intake Air Temperature Sensor Circuit Diagram
G10606405Courtesy of HYUNDAI MOTOR AMERICA
