Signal Circuit Inspection
WARNING: This page is about a different variant/trim than selected.
- Ignition "OFF".
- Disconnect IAT sensor connector and PCM connector.

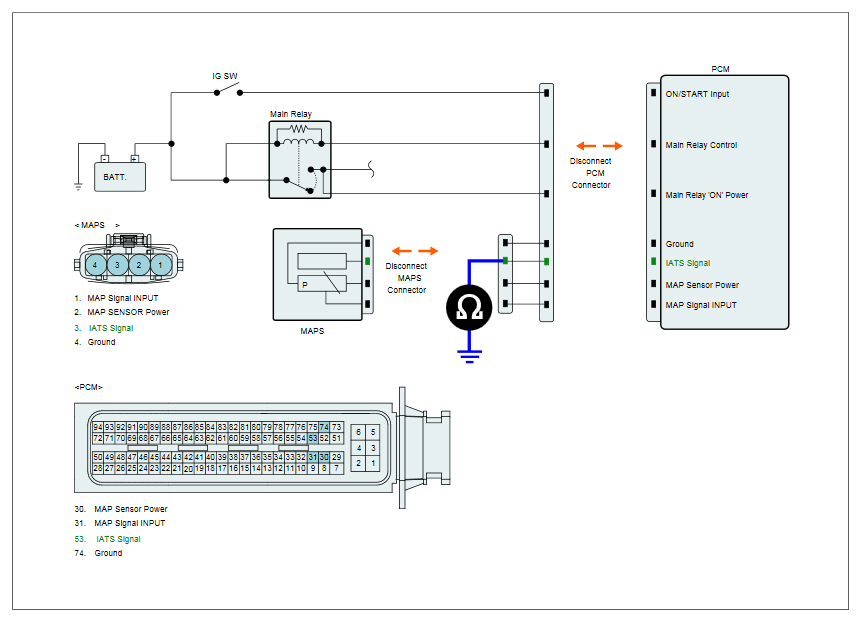

- Measure the resistance between signal terminal of IATS harness connector and chassis ground.
Specification: Infinite
- Is resistance within the specification?
YES
- Go to next step as below.
NO
- Repair as necessary and go to "W/HARNESS INSPECTION " procedure.
