Ground Circuit Inspection
WARNING: This page is about a different variant/trim than selected.
- IG "OFF".

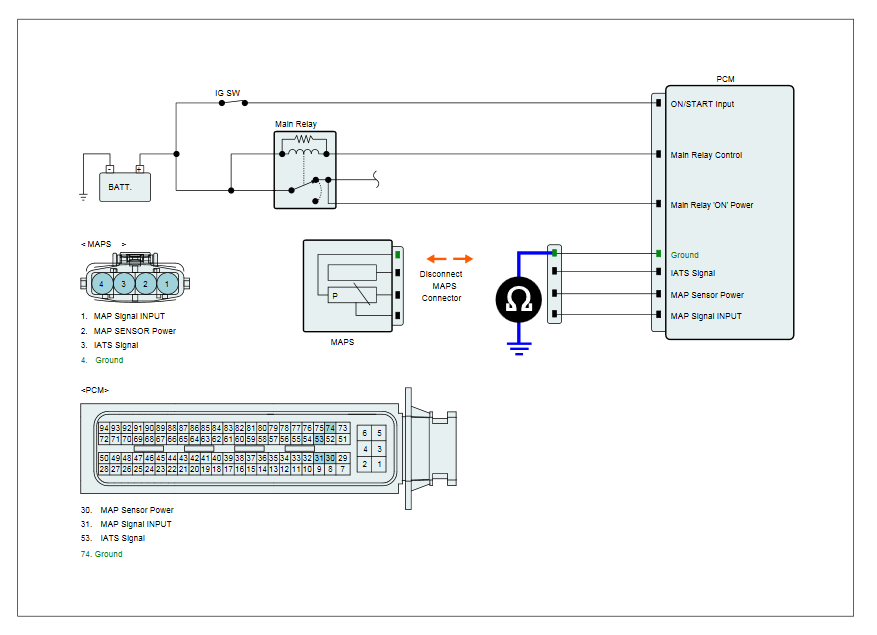

- Measure the resistance between ground terminal of MAPS harness connector and chassis ground.
Specification: Below 1Ω
- Is the measured resistance within specification?
YES
- Go to next step as below.
NO
- Repair or replace as necessary and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
