Power Circuit Inspection

WARNING: This page is about a different variant/trim than selected.

IG "OFF".
Disconnect MAPS connector.
IG "ON" & ENG "OFF".
Measure the voltage between power terminal of MAPS harness connector and chassis ground.
Specification: Approx. 5V

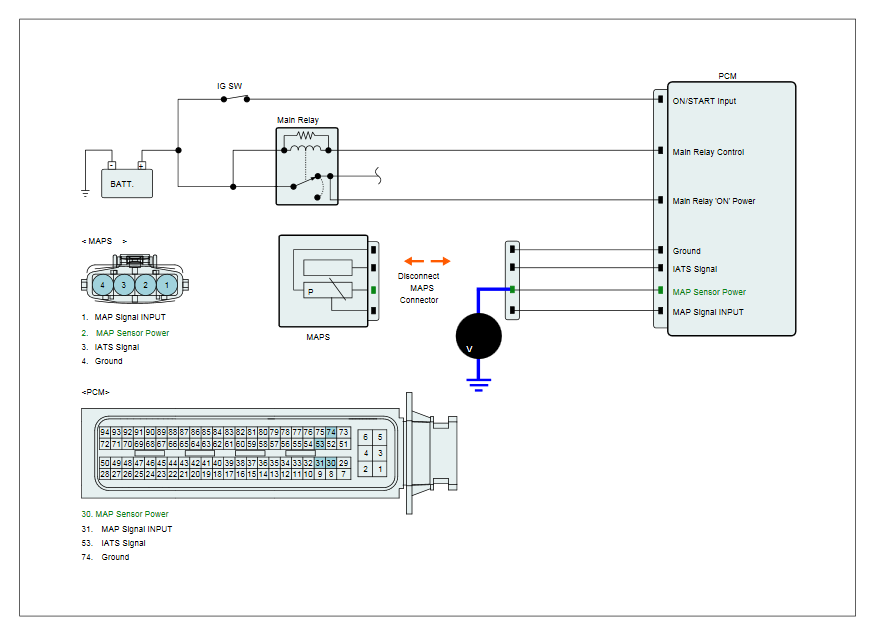

Fig 1: Measuring Voltage Between Power Terminal Of MAPS Harness Connector And Chassis Ground
Courtesy of HYUNDAI MOTOR AMERICA
Is the measured voltage within specification?
YES
- Go to "SIGNAL CIRCUIT INSPECTION " procedure.
NO
- Repair or replace as necessary and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
