Section 125 (Engine Control System Diagnosis (1 Of 2) (HEV))
>>
DTC P0077: Intake Valve Control Solenoid Circuit-High (Bank 1)
>>
General Information
>>
Diagnostic Circuit Diagram
Diagnostic Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

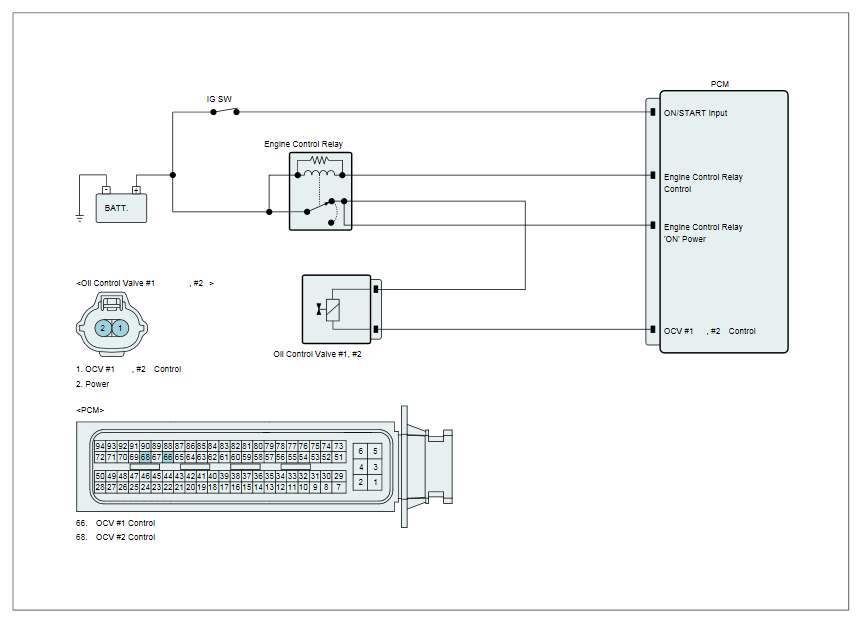

Fig 1: Oil Control Valve Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
