Section 125 (Engine Control System Diagnosis (1 Of 2) (HEV))
>>
DTC P0011: 'A' Camshaft Position-Timing Over-Advanced Or System Performance (Bank 1)
>>
General Information
>>
Component Location
Component Location
WARNING:
This page is about a different variant/trim than selected.

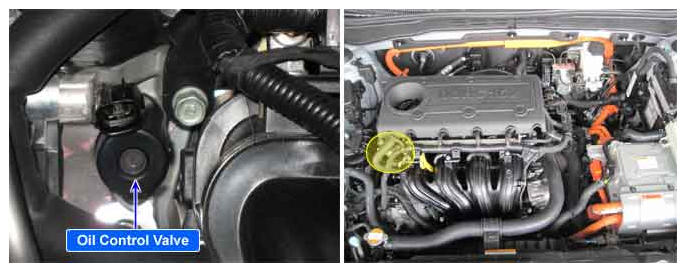

Fig 1: Oil Control Valve Location
Courtesy of HYUNDAI MOTOR AMERICA
