Section 120 (Air Conditioning System Diagnosis (HEV))
>>
DTC U0293: Lost Communication With Hybrid Powertrain Control Module (C=CAN)
>>
General Information
>>
Diagnostic Circuit Diagram
Diagnostic Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

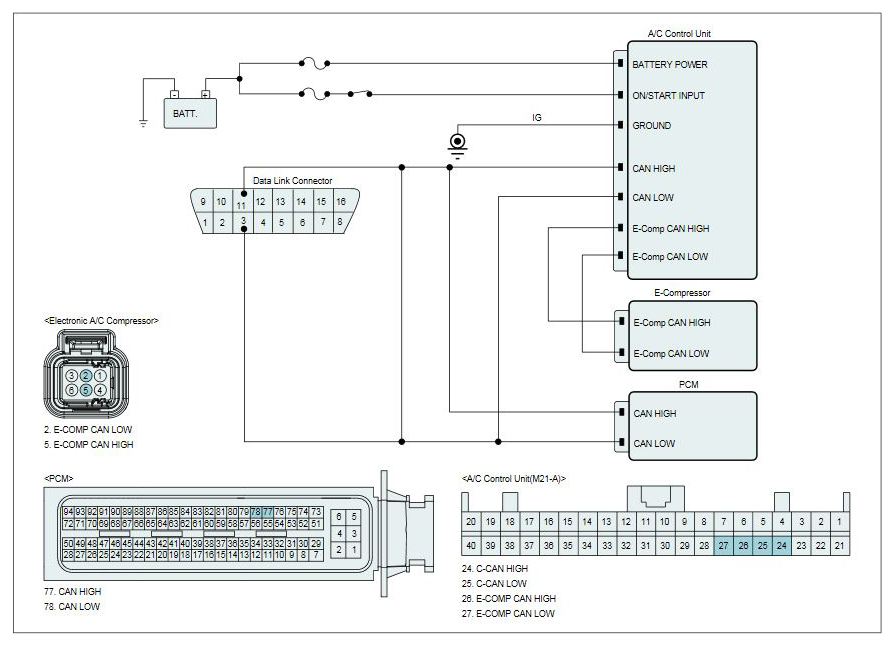

Fig 1: PCM Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
