Terminal and Connector Inspection
WARNING: This page is about a different variant/trim than selected.
- Many malfunctions in the electrical system are caused by poor connection. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.

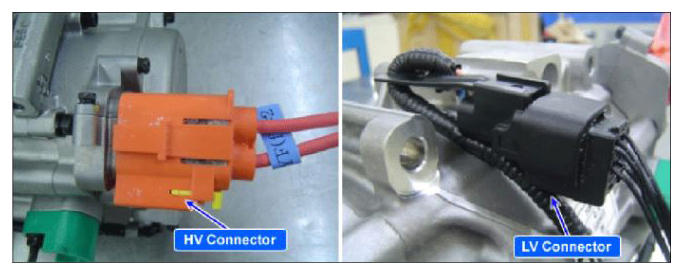

- Thoroughly check connectors for pushing back, looseness, poor connection, bending, corrosion, contamination, deterioration, or damage for High/Low Voltage Connector.
- Has a problem been found?
YES
- Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to "W/HARNESS INSPECTION " procedure.
