Monitor Scantool Data

WARNING: This page is about a different variant/trim than selected.

■ Actuation Test

  1. Connect Scantool with diagnostic connector.
  2. Warm up the Engine to normal Engine temperature after Engine starts.
  3. Select and monitor "Air Mix Door Potentioner-Driver" parameter on Scantool.
  4. Select and perform Actuation test Air Mix Door Potentioner-Driver - 0%/50%/100% in order.
  5. Check that the value of all the parameters are changed when performing the actuation test.

    Specification:

    Check that the value of Air Mix Door Potentiometer at current data should be close to the value of the actuation test.

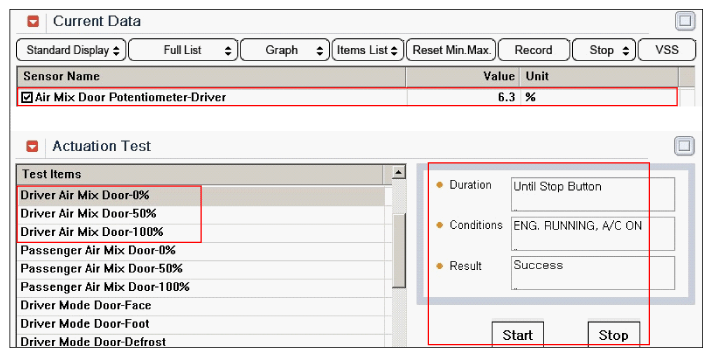

    Fig 1: Screen Display - Driver Air Mix Door Potentiometer-Driver
    G10591229Courtesy of HYUNDAI MOTOR AMERICA
  6. Does the value of current data follow in accordance with the each actuation test?

    YES

    • This is a intermittent problem caused by poor contact of component or Control Unit Thoroughly check the looseness, poor connection, bent, corrosion, contamination, deformation or damage of connector.
    • Repair or replace as necessary and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
