DTC B2313: Water Pump Open
>>
General Information
>>
Diagnostic Circuit Diagram
Diagnostic Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

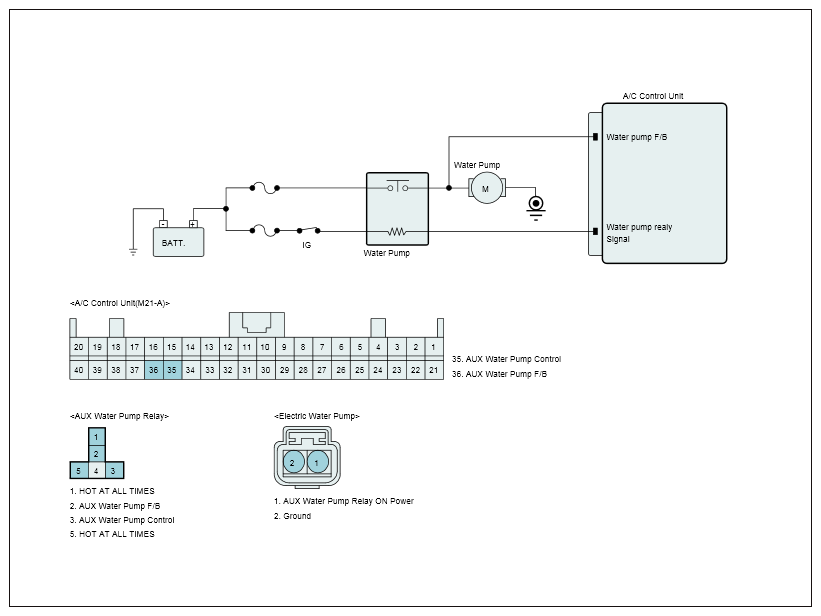

Fig 1: Water Pump Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
