Terminal and Connector Inspection

WARNING: This page is about a different variant/trim than selected.

Many malfunctions in the electrical system are caused by poor connection. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
Thoroughly check connectors for pushing back, looseness, poor connection, bending, corrosion, contamination, deterioration, or damage for High/Low Voltage Connector.
Has a problem been found?

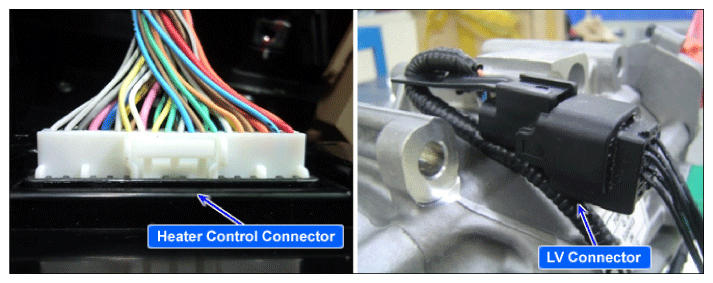

Fig 1: Heater Control Connector And LV Connector
Courtesy of HYUNDAI MOTOR AMERICA

YES
- Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure
NO
- Go to "VEHICLE FUSE (12V) INSPECTION " procedure.
