Inverter Thermal Pad Inspection

WARNING: This page is about a different variant/trim than selected.

■ Check the Inverter Thermal Pad Status

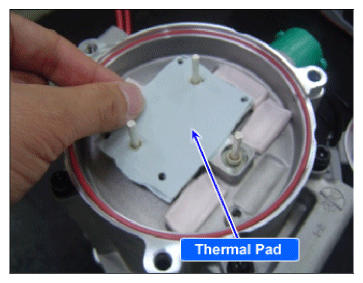

Fig 1: Thermal Pad
G10591200Courtesy of HYUNDAI MOTOR AMERICA
  1. Is there any problem on the thermal pad?

    YES

    NO

    • Change the Inverter/E-Comp Ass'y
