Monitor Scantool Data

WARNING: This page is about a different variant/trim than selected.
  1. Connect GDS to DLC.
  2. Ignition "OFF"
  3. Ignition "ON"
  4. Checking the DTCs.
  5. Is the DTC B1803 deleted?

    YES

    • This is a intermittent problem caused by poor contact of component or Control Unit Thoroughly check the looseness, poor connection, bent, corrosion, contamination, deformation or damage of connector.
    • Repair or replace as necessary and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO

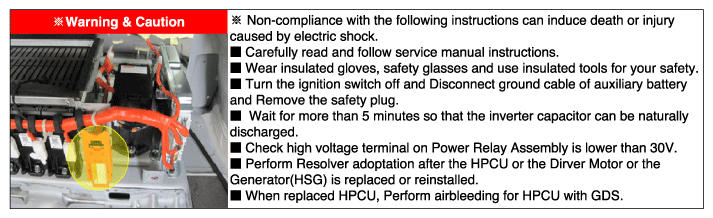

Fig 1: Power Relay Assembly
G10591198Courtesy of HYUNDAI MOTOR AMERICA
